Setting Jobs Options

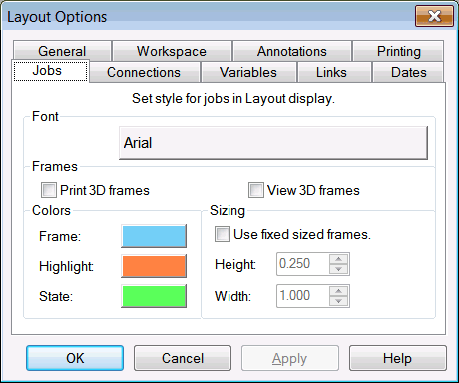

The Jobs Options dialog is used to configure how the job boxes are displayed in the window. The font, color, size and whether or not the frames are in 3D can all be configured.

To configure the Jobs Options, click on the Jobs tab in the Options dialog.

Field	Description
Font	Select the desired font to use for the Job name and Job queue box contained in each job.
Frames	To print the frames of the job boxes in 3D mode, check off the Print 3D frames box. To view the frames of the job boxes in 3D mode, check off the View 3D frames box.
Frame Options	See Setting Frame Options
Highlight	The color of the highlighting around a job box can be set by clicking on the Highlight button. Select from the WIndows color spectrum. Red is default.
State	See Setting State Options
Sizing	You can set a fixed size of the job box frames manually or allow them to be set according to the length of the job name. To set them as a fixed size, click on the Use fixed sized frame box and enter a Height and Width for the frame. Note that this may truncate the job name if the width is too small.

In This Section

Setting Frame Options

Setting State Options
