The List dir names... selection displays a numbered list of all directories that are in the current job group. This can be used anytime directory information is needed on the jobs. The numbers are used in the Number from list style of directory name display.
In order to list the directory names, select List dir names... from the Display menu. A list will appear, listing the directories in the current job group as shown below.
3.5.7 Redraw
The Redraw feature can be used any time a visible part of the job group
window is not completely drawn correctly. This may be caused by other
windows interacting with the job group window or other system
animolies. It can be easily corrected by using this feature.
In order to do a redraw of a job group window, select
Redraw from the Display menu. The
window will be completely redrawn.
3.5.8 Refresh states
The Refresh states feature is used to update the queue states icons in the job boxes. The states may not be up to date for a variety of reasons, but can be refreshed to reflect the true state of each job in the window.
In order to refresh the queue states of the jobs in a job group window,
select Refresh states from the
Display menu. All queue icons will be updated to their
current state.
3.5.9 Start time states
Upon job completion, jobs will display the job completion icon until the next start time is encountered. The Start time states selection will display all jobs that are awaiting restart with the "Waiting for start time" queue icon instead of the "Complete" or "Failed" icon.
In order to display the "Waiting for start time" icons for all jobs awaiting restart, select Start time states from the Display menu.
3.5.10 Find job...
The Find job... selection allows the user to locate a
job icon in a job group window by highlighting it with a thick black
border. This is particularly useful in job groups containing large
numbers of jobs where it is difficult to locate a particular job icon.
In order to highlight a particular job in a job group, select Find job... from the Display menu.
The job may be chosen from the list as shown in Figure 3-4. The job must be visible in the current job group in order to highlight it's icon.

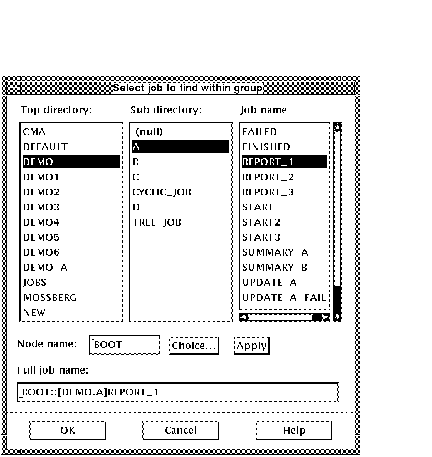

Figure 3-4 Find job
The job highlighted in Figure 3-5 would occur from the selection made in the dialog box shown in Figure 3-4.

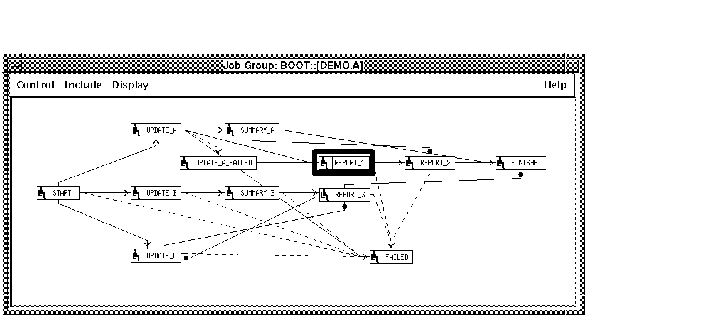

Figure 3-5 Job highlighted
3.5.11 Clear find job
In order to clear the thick border around a job highlighted in the
Find job... operation, select Clear find
job from the Display menu. The job icon will
return to it's previous appearance.
