In order to add a device to the MEDIA device parameter, select Add from the Device menu. The initial list can be conveniently created by running the Semi automatic selection from the Configurator menu. Any additional devices which will be used with MEDIA should be added using this selection. A dialog box will appear requesting a valid VMS device name.
If the device name is valid a form will appear.
If the device name is not valid, a message will indicate that the
device is not available and the device name must be reentered.
5.2.2.2 Displaying a device
In order to display information about a device, select Display from the Device menu. A menu listing the available devices that have been added to the parameter file will appear.
After selecting the desired device from the list the form will appear.
5.2.2.3 Modifying a device
In order to modify information about a device, select
Modify from the Device menu. A menu
listing the available devices that have been added to the parameter
file will appear. After selecting the desired device from the list, the
form will appear displaying the data.
5.2.2.4 Deleting a device
In order to Delete a device, select Delete from the
Device menu. A menu listing the available devices that
have been added to the parameter file will appear. After selecting the
desired device from the list, a box will appear prompting to "Confirm
deletion of the device from list" Press return (or Do) and the device
will be deleted from the MEDIA parameter file upon exiting the
configure program.
5.2.3 Types
The most common use for a type is to categorize physical devices into groups (CARTRIDGES, TAPES, DISKS etc.). You can also create types according to classifications such as user backups, system backups etc. and assign certain physical devices to those groupings. In order to create, display, add devices to, remove devices from or delete types choose Types from the MEDIA settings menu.
5.2.3.1 Create type
To create a new type select Create type from the
Type menu.
A dialog box will appear into which the name of the new type should be entered.
5.2.3.2 Display type
In order to display the devices assigned to a type, select
Display type from the Type menu. A
menu will appear listing the available types.

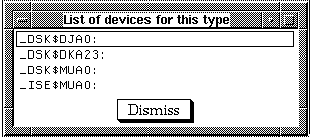

A list of the devices assigned to the type will be displayed.
5.2.3.3 Add device to type
In order to add a device to a type, select Add device to
type from the Type menu. A menu will appear
listing the available types. After choosing the type to add a device
to, a list of the devices not yet assigned to this type will appear.
Choose the device to be added.
5.2.3.4 Remove device from type
In order to remove a device from a type, select Remove device from a type from the Type menu. A menu will appear listing the available types.
After choosing the type, a list of the devices presently assigned to
this type will appear. Choose the device to be removed.
5.2.3.5 Delete type
In order to permanently delete a type, select Delete type from the Type menu. A menu listing the available types will appear. A box will appear asking to confirm, or dismiss the deletion. On a DECwindows workstation click on Confirm to delete the type from the MEDIA parameter file. Click on Dismiss to cancel the deletion.
5.2.4 Queues
Setting the queue parameter specifies which queue is to be used during
a job command to submit the specified medium for processing. The media
that is submitted into a queue is grouped using the type command.
Therefore, it is important to set up types before attempting to
configure the queue in which it is used. In order to create, display,
modify or delete a queue, choose Queues from the
MEDIA Settings menu.
The following table describes the fields from the form that appears when creating, modifying or displaying a queue.
| Field | Description |
|---|---|
| Queue name | This is the name used to identify the queue. |
| Node name | Name of node that the queue will operate on. Normally refers to the node specific device. |
| Base priority | Priority of queue relative to other queues currently running. Value can be 0 to 255. Base priority is strictly a VMS queue function and is not related to the parameter file. |
| Job limit | Number of executable jobs that can operate in a single queue. Value can be 0 to 16. Normal value is 4. Job limit is strictly a VMS queue function and is not related to the parameter file. |
| Types | A list of the types that are to be assigned to the queue. The maximum is 10 types to a queue. |
To create a new queue, choose Create from the Queue menu. A dialog box will appear into which the name of the queue to be created can be entered.
If the queue name has previously been entered a message will appear informing the user that the name is already being used. In this case a new name must be entered. After entering the queue name, the queue data form will appear.
In order to display data related to a queue, choose Display from the Queue menu. A menu will appear listing all current queues.
5.2.4.3 Modifying a queue
In order to modify the data related to a certain queue, select
Modify from the Queue menu. A menu
will appear listing all current queues.

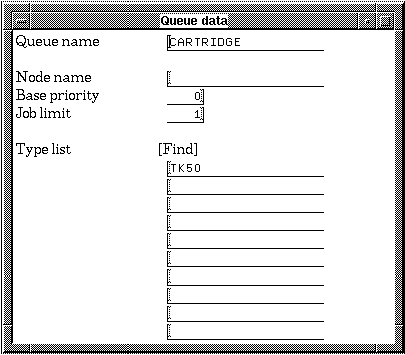

After choosing the desired queue the following form will appear.
Figure 5-2 Queue data form
5.2.4.4 Deleting a queue
To permanently delete a queue, choose Delete from the
Queue menu. A menu will appear listing all current
queues. After choosing the desired queue, a confirmation message will
appear prompting to "confirm deletion of the queue. On a DECwindows
workstation click on Yes to delete the queue from the MEDIA
parameter file. Click on No to cancel the deletion.
5.2.5 Defaults
In order to set the defaults for add-on and catalog operations, temporary medium and selection controls, choose Defaults from the MEDIA Settings menu.
The purpose of setting the defaults is to have the most common data
already predefined when performing a procedure. This is a convenient
method of avoiding time consuming data entry when working with new
media.
5.2.6 Default tables
The following tables describe the fields which may be set to default
for the add and catalog operations as well as setting up temporary
medium. Note that very few are suited to be set to default values. For
instance you would not want to set a default value for the External ID
of a medium since this would mean all your media would have the same
External ID. Those fields that are suited for default values are in
bold type in the following tables.
5.2.7 Physical description fields

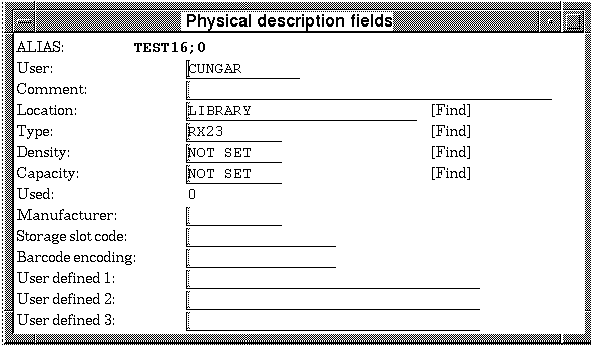

Table 5-1 lists all fields displayed when a user chooses to either modify or display a medium header and then chooses Physical description fields from the subsequent menu:
| Field | Description |
|---|---|
| Alias | This is the descriptive name which a user assigns to the medium and uses to refer to it. The alias may be any alphanumeric combination of 1 to 21 characters. |
| User | This is the user name assigned to the medium. All entries in the allocated pool are owned by a user. OPERATOR privilege required for modification. |
| Comment | This is a text field into which any text data can be inserted. |
| Location | This is the rack or bin in which the tape will be stored. This is sent, along with the external ID, to the OPERATOR whenever the medium needs to be mounted on a drive. |
| Type | Specifies the base TYPE category for a medium. All TYPES are defined in the parameter file. Only predefined values can be entered here. |
| Density | The recording density of the tape. The default will cause the system to automatically toggle to the correct density setting during a mount or update operation, if the density is not known. |
| Capacity | This is either the total length of a tape, in feet, or total disk space, in megabytes. |
| Used | This is either the amount of tape used, in feet, or the amount of disk space used, in megabytes. Read Only. |
| Manufacturer | This is the manufacturer of the medium. This field is optional and purely for identification purposes. |
| Storage slot code | A text field that may be used with auxiliary robotic devices, to store relevant data on a device slot. MANAGER or OPERATOR privilege required for modification. |
| Barcode encoding | A text field that can be used for information related to a bar code reader. MANAGER or OPERATOR privilege required for modification. |
| User defined 1 | A text field that may be used for any relevant information regarding an auxillary robotic device. |
| User defined 2 | A text field that may be used for any relevant information regarding an auxillary robotic device. |
| User defined 3 | A text field that may be used for any relevant information regarding an auxillary robotic device. MANAGER or OPERATOR privilege required for modification. |

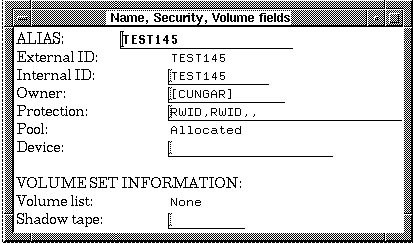

Table 5-2 lists all fields displayed when a user chooses to either modify or display a medium header and then chooses Name, security, volume fields from the subsequent menu:
| Field | Description |
|---|---|
| External ID | The external ID or serial number is the alphanumeric character string marked on the outside of the medium. It is used by the OPERATOR to identify the medium in the media library. |
| Internal ID | This is the name magnetically encoded on the medium and is used by the computer to verify that the correct medium has been mounted by the OPERATOR. Usually, this is the same as the external ID. |
| Owner | This is the User Identification Code of the owner. |
| Protection | This specifies protections of the medium. The standard VMS protection schemes are applicable. |
| Pool | This field indicates which of the pool assignments for the medium: available, allocated or released. MANAGER privilege required for modification. |
| Device | This field specifies the type of device suitable for the medium. This is either a tape or a drive and a descriptive name indicates the type of device. |
| Volume list | The name of the volume list which the medium belongs to. |
| Shadow tape | The external ID of a duplicate tape. |

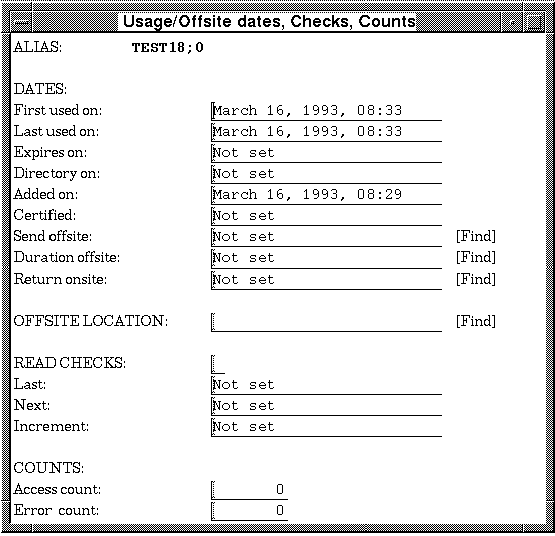

Table 5-3 lists all fields displayed when a user chooses to either modify or display a medium header and then chooses Usage/Offsite dates, Checks, Counts from the subsequent menu:
| Field | Description |
|---|---|
| First used | This is a date field indicating the first time that the medium owner obtained access to this medium. MANAGER or OPERATOR privilege required for modification. |
| Last used | This is the last time the medium was used. MANAGER or OPERATOR privilege required for modification. |
| Expires on | This is when the medium will be placed into the released pool. |
| Directory on | This is the last time an update was made of the on-line directory information. MANAGER or OPERATOR privilege required for modification. |
| Added on | This is the date the medium was added to the library. MANAGER or OPERATOR privilege required for modification. |
| Certified | This is the date the tape was last certified or cleaned. This is a static field that may not be modified by a general user. OPERATOR privilege required for modification. |
| Send offsite | A text field specifying the date an offsite medium is sent to a site. MANAGER or OPERATOR privilege required for modification. |
| Duration offsite | A text field specifying the length of time an offsite medium will remain at a site. MANAGER or OPERATOR privilege required for modification. |
| Return offsite | A text field specifying the date an offsite medium will return from an offsite location. MANAGER or OPERATOR privilege required for modification. |
| Offsite location | A text field specifying the location of an offsite medium. MANAGER or OPERATOR privilege required for modification. |
| Last | This indicates the last time an automatic read check took place. |
| Next | This displays the next time an automatic read check will take place. |
| Incremental | This is the time increment to use in scheduling the next automatic read check. |
| Access count | The access count is the number of times the medium has been mounted in MEDIA. It is incremented each time the MOUNT command is issued. MANAGER or OPERATOR privilege required for modification. |
| Error count | This displays the error count associated with each medium. This can be used in a type 1 display. |
