The Layout Toolbar provides quick access to the most commonly used commands in the EnterpriseSCHEDULE Layout environment. The Layout Toolbar will appear any time a layout is open and selected on the EnterpriseSCHEDULE desktop. Click on a button once to carry out a command. The selected button will continue to perform that function in the layout until another button is selected. The commands are shown below.
Note: The Layout Toolbar is only visible when a Layout is the window in focus.

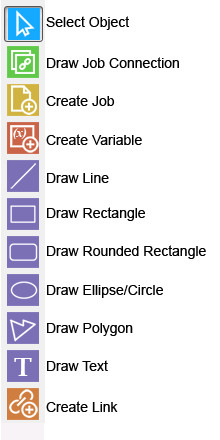

The following table describes menu equivalents to the buttons. The links describe the button's function.
Button |
Menu equivalent |
Draw connection |
Draw > Connection |
Draw job |
Draw > Job |
Draw line |
Draw > Line |
Draw rectangle |
Draw > Rectangle |
Draw rounded rectangle |
Draw > Rounded Rectangle |
Draw ellipse |
Draw > Ellipse |
Draw polygon |
Draw > Polygon |
Draw text |
Draw > Text |
Draw link |
Draw > text |
